Features of BMW three-phase 200V series

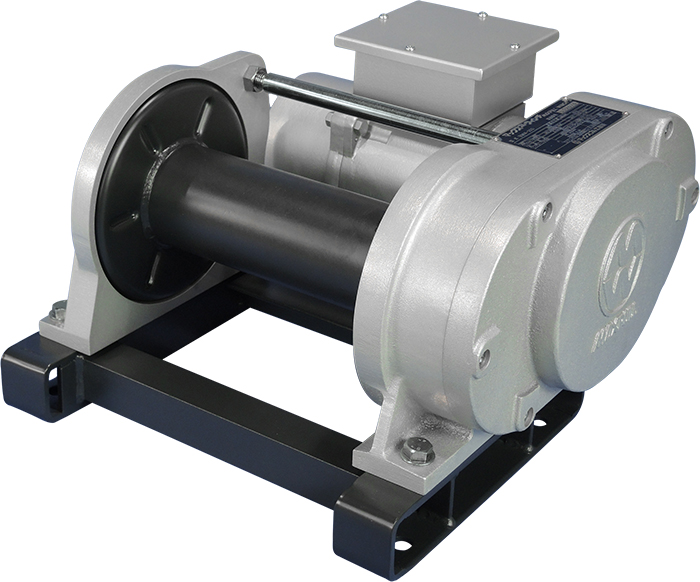

This is a parallel type electric winch equipped with a built-in motor.
●The parallel type, which has two rows of the motor and drum sections, is compact and can be installed in narrow spaces.
●A frame of lightweight and robust aluminum alloy casting is used. It has great design and functionality such as dust and rust resistence, drip-proof and quietness.
●A high-performance electromagnetic brake is used; therefore, the braking power is extremely high making it effective even for delicate work.
●This winch uses industrial three-phase 200V.
Model: BMW-201 / BMW-202 / BMW-203 / BMW-301 / BMW-302 / BMW-303 / BMW-401 / BMW-402 / BMW-403 / BMW-501 / BMW-502 / BMW-503
Excellent compactness
The parallel type, which has two rows of the motor and drum sections, is compact and can be installed in narrow spaces.
Exceptional durability
In addition to using an outdoor motor, the reduction mechanism is rust-resistant and the frame is made of lightweight aluminum alloy casting. This product has high self-cooling properties and good heat dissipation making it safe for rain, wind, and dust. The sound is also quiet.
Reliable safety
It uses MAXPULL’s original high-performance electromagnetic brake developed jointly with a motor manufacturer so it has extremely high braking force and it is effective even for detailed work. The wire rope is fixed to the drum with a double safety structure using a special drum that ensures unrestricted winding. Fixing the end of the wire rope to the drum can be easily done using a Hex key L-wrench. Please see the explanation diagram below.
MAXPULL’s highly reliable original safety design
How to set the wire rope
Example of BMW three-phase 200V series usage site
BMW three-phase 200V series product list
Introduction to list of products.
Model: BMW-201
| Model | BMW-201 | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 130kgf (280lbs) 3rd layer: 130kgf (280lbs) 5th layer: 110kgf (240lbs) |
1st layer: 110kgf (240lbs) 3rd layer: 110kgf (240lbs) 5th layer: 90kgf (190lbs) |
| Line Speed | 1st layer: 10.8 m/min (35.4 ft/min) 3rd layer: 13.5 m/min (44.3 ft/min) 5th layer: 16.2 m/min (53.1 ft/min) |
1st layer: 12.9 m/min (42.3 ft/min) 3rd layer: 16.1 m/min (52.8 ft/min) 5th layer: 19.4 m/min (63.6 ft/min) |
| Drum Capacity | 1st layer: φ6mmx11.0m (36.0 ft) 3rd layer: φ6mmx37.3m (122.3ft) 5th layer: φ6mmx69.0m (226.3ft) |
|
| Applicable Wire Rope | φ6mm (6X24) (Japanese Industrial Standards) | |
| Gear Ratio | 40.3 : 1 | |
| Motor type | Totally enclosed self-cooling type: built-in motor | |
| Output | 0.4 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 2.2A | Three-phase AC200V 60Hz 1.9A |
| Insulation | Class B | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | 40%ED | |
| Control method | Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 4 cores x 2.5m) | |
| Own weight | 44.8 kg (98.8lbs) |
Model: BMW-202
| Model | BMW-202 | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 210kgf (460lbs) 3rd layer: 210kgf (460lbs) 5th layer: 180kgf (390lbs) |
1st layer: 180kgf (390lbs) 3rd layer: 180kgf (390lbs) 5th layer: 150kgf (330lbs) |
| Line Speed | 1st layer: 6.7 m/min (22.0 ft/min) 3rd layer: 8.4 m/min (27.6 ft/min) 5th layer: 10.1 m/min (33.1 ft/min) |
1st layer: 8.0 m/min (26.2 ft/min) 3rd layer: 10.1 m/min (33.1 ft/min) 5th layer: 12.1 m/min (39.7 ft/min) |
| Drum Capacity | 1st layer: φ6mmx11.0m (36.0 ft) 3rd layer: φ6mmx37.3m (122.3ft) 5th layer: φ6mmx69.0m (226.3ft) |
|
| Applicable Wire Rope | φ6mm (6X24) (Japanese Industrial Standards) | |
| Gear Ratio | 64.5 : 1 | |
| Motor type | Totally enclosed self-cooling type: built-in motor | |
| Output | 0.4 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 2.2A | Three-phase AC200V 60Hz 1.9A |
| Insulation | Class B | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | 40%ED | |
| Control method | Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 4 cores x 2.5m) | |
| Own weight | 45.1 kg (99.4lbs) |
Model: BMW-203
| Model | BMW-203 | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 330kgf (720lbs) 3rd layer: 330kgf (720lbs) 5th layer: 280kgf (610lbs) |
1st layer: 270kgf (590lbs) 3rd layer: 270kgf (590lbs) 5th layer: 230kgf (500lbs) |
| Line Speed | 1st layer: 4.4 m/min (14.4 ft/min) 3rd layer: 5.5 m/min (18.0 ft/min) 5th layer: 6.6 m/min (21.7 ft/min) |
1st layer: 5.2 m/min (17.1 ft/min) 3rd layer: 6.6 m/min (21.7 ft/min) 5th layer: 7.9 m/min (25.9 ft/min) |
| Drum Capacity | 1st layer: φ6mmx11.0m (36.0 ft) 3rd layer: φ6mmx37.3m (122.3ft) 5th layer: φ6mmx69.0m (226.3ft) |
|
| Applicable Wire Rope | φ6mm (6X24) (Japanese Industrial Standards) | |
| Gear Ratio | 99.0 : 1 | |
| Motor type | Totally enclosed self-cooling type: built-in motor | |
| Output | 0.4 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 2.2A | Three-phase AC200V 60Hz 1.9A |
| Insulation | Class B | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | 40%ED | |
| Control method | Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 4 cores x 2.5m) | |
| Own weight | 47.0 kg (103.6lbs) |
Model: BMW-301
| Model | BMW-301 | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 250kgf (550lbs) 3rd layer: 250kgf (550lbs) 5th layer: 210kgf (460lbs) |
1st layer: 210kgf (460lbs) 3rd layer: 210kgf (460lbs) 5th layer: 170kgf (370lbs) |
| Line Speed | 1st layer: 10.6 m/min (34.8 ft/min) 3rd layer: 13.3 m/min (43.6 ft/min) 5th layer: 16.0 m/min (52.5 ft/min) |
1st layer: 12.7 m/min (41.7 ft/min) 3rd layer: 15.9 m/min (52.2 ft/min) 5th layer: 19.1 m/min (62.7 ft/min) |
| Drum Capacity | 1st layer: φ6mmx11.0m (36.0 ft) 3rd layer: φ6mmx37.3m (122.3ft) 5th layer: φ6mmx69.0m (226.3ft) |
|
| Applicable Wire Rope | φ6mm (6X24) (Japanese Industrial Standards) | |
| Gear Ratio | 40.3 : 1 | |
| Motor type | Totally enclosed self-cooling type: built-in motor | |
| Output | 0.75 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 3.6A | Three-phase AC200V 60Hz 3.2A |
| Insulation | Class B | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | 40%ED | |
| Control method | Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 4 cores x 2.5m) | |
| Own weight | 45.9 kg (101.2lbs) |
Model: BMW-302
| Model | BMW-302 | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 400kgf (880lbs) 3rd layer: 400kgf (880lbs) 5th layer: 330kgf (720lbs) |
1st layer: 330kgf (720lbs) 3rd layer: 330kgf (720lbs) 5th layer: 280kgf (610lbs) |
| Line Speed | 1st layer: 6.6 m/min (21.7 ft/min) 3rd layer: 8.3 m/min (27.2 ft/min) 5th layer: 10.0 m/min (32.8 ft/min) |
1st layer: 7.9 m/min (25.9 ft/min) 3rd layer: 9.9 m/min (32.5 ft/min) 5th layer: 11.9 m/min (39.0 ft/min) |
| Drum Capacity | 1st layer: φ6mmx11.0m (36.0 ft) 3rd layer: φ6mmx37.3m (122.3ft) 5th layer: φ6mmx69.0m (226.3ft) |
|
| Applicable Wire Rope | φ6mm (6X24) (Japanese Industrial Standards) | |
| Gear Ratio | 64.5 : 1 | |
| Motor type | Totally enclosed self-cooling type: built-in motor | |
| Output | 0.75 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 3.6A | Three-phase AC200V 60Hz 3.2A |
| Insulation | Class B | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | 40%ED | |
| Control method | Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 4 cores x 2.5m) | |
| Own weight | 46.2 kg (101.9lbs) |
Model: BMW-303
| Model | BMW-303 | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 580kgf (1200lbs) 3rd layer: 580kgf (1200lbs) 5th layer: 470kgf (1000lbs) |
1st layer: 480kgf (1000lbs) 3rd layer: 480kgf (1000lbs) 5th layer: 390kgf (850lbs) |
| Line Speed | 1st layer: 4.4 m/min (14.4 ft/min) 3rd layer: 5.9 m/min (19.4 ft/min) 5th layer: 7.3 m/min (24.0 ft/min) |
1st layer: 5.3 m/min (17.4 ft/min) 3rd layer: 7.0 m/min (23.0 ft/min) 5th layer: 8.7 m/min (28.5 ft/min) |
| Drum Capacity | 1st layer: φ8mmx8.5m (27.8 ft) 3rd layer: φ8mmx29.7m (97.4ft) 5th layer: φ8mmx56.6m (185.6ft) |
|
| Applicable Wire Rope | φ8mm (6XFi29) (Japanese Industrial Standards) | |
| Gear Ratio | 99.0 : 1 | |
| Motor type | Totally enclosed self-cooling type: built-in motor | |
| Output | 0.75 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 3.6A | Three-phase AC200V 60Hz 3.2A |
| Insulation | Class B | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | 40%ED | |
| Control method | Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 4 cores x 2.5m) | |
| Own weight | 47.5 kg (104.7lbs) |
Model: BMW-401
| Model | BMW-401 | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 640kgf (1400lbs) 3rd layer: 640kgf (1400lbs) 5th layer: 510kgf (1100lbs) |
1st layer: 530kgf (1100lbs) 3rd layer: 530kgf (1100lbs) 5th layer: 430kgf (940lbs) |
| Line Speed | 1st layer: 7.8 m/min (25.6 ft/min) 3rd layer: 10.6 m/min (34.8 ft/min) 5th layer: 13.5 m/min (44.3 ft/min) |
1st layer: 9.3 m/min (30.5 ft/min) 3rd layer: 12.7 m/min (41.7 ft/min) 5th layer: 16.1 m/min (52.8 ft/min) |
| Drum Capacity | 1st layer: φ9mmx8.9m (29.1 ft) 3rd layer: φ9mmx31.5m (103.3ft) 5th layer: φ9mmx60.7m (199.1ft) |
|
| Applicable Wire Rope | φ9mm (6XFi29) (Japanese Industrial Standards) | |
| Gear Ratio | 57.2 : 1 | |
| Motor type | Totally enclosed self-cooling type: built-in motor | |
| Output | 1.5 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 6.4A | Three-phase AC200V 60Hz 5.9A |
| Insulation | Class B | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | 40%ED | |
| Control method | Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 4 cores x 2.5m) | |
| Own weight | 61.7 kg (136.0lbs) |
Model: BMW-402
| Model | BMW-402 | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 900kgf (1900lbs) 3rd layer: 900kgf (1900lbs) 5th layer: 710kgf (1500lbs) |
1st layer: 770kgf (1600lbs) 3rd layer: 770kgf (1600lbs) 5th layer: 610kgf (1300lbs) |
| Line Speed | 1st layer: 5.1 m/min (16.7 ft/min) 3rd layer: 6.9 m/min (22.6 ft/min) 5th layer: 8.8 m/min (28.9 ft/min) |
1st layer: 6.1 m/min (20.0 ft/min) 3rd layer: 8.3 m/min (27.2 ft/min) 5th layer: 10.5 m/min (34.4 ft/min) |
| Drum Capacity | 1st layer: φ9mmx8.9m (29.1 ft) 3rd layer: φ9mmx31.5m (103.3ft) 5th layer: φ9mmx60.7m (199.1ft) |
|
| Applicable Wire Rope | φ9mm (6XFi29) (Japanese Industrial Standards) | |
| Gear Ratio | 87.5 : 1 | |
| Motor type | Totally enclosed self-cooling type: built-in motor | |
| Output | 1.5 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 6.4A | Three-phase AC200V 60Hz 5.9A |
| Insulation | Class B | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | 40%ED | |
| Control method | Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 4 cores x 2.5m) | |
| Own weight | 63.2 kg (139.3lbs) |
Model: BMW-403
| Model | BMW-403 | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 1000kgf (2200lbs) 3rd layer: 1000kgf (2200lbs) 5th layer: 790kgf (1700lbs) |
1st layer: 900kgf (1900lbs) 3rd layer: 900kgf (1900lbs) 5th layer: 710kgf (1500lbs) |
| Line Speed | 1st layer: 4.3 m/min (14.1 ft/min) 3rd layer: 5.9 m/min (19.4 ft/min) 5th layer: 7.4 m/min (24.3 ft/min) |
1st layer: 5.1 m/min (16.7 ft/min) 3rd layer: 7.0 m/min (23.0 ft/min) 5th layer: 8.9 m/min (29.2 ft/min) |
| Drum Capacity | 1st layer: φ9mmx8.9m (29.1 ft) 3rd layer: φ9mmx31.5m (103.3ft) 5th layer: φ9mmx60.7m (199.1ft) |
|
| Applicable Wire Rope | φ9mm (6XFi29) (Japanese Industrial Standards) | |
| Gear Ratio | 103.3 : 1 | |
| Motor type | Totally enclosed self-cooling type: built-in motor | |
| Output | 1.5 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 6.4A | Three-phase AC200V 60Hz 5.9A |
| Insulation | Class B | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | 40%ED | |
| Control method | Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 4 cores x 2.5m) | |
| Own weight | 64.5 kg (142.2lbs) |
Model: BMW-501
| Model | BMW-501 | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 900kgf (1900lbs) 3rd layer: 900kgf (1900lbs) 5th layer: 710kgf (1500lbs) |
1st layer: 750kgf (1600lbs) 3rd layer: 750kgf (1600lbs) 5th layer: 590kgf (1300lbs) |
| Line Speed | 1st layer: 7.7 m/min (25.3 ft/min) 3rd layer: 10.5 m/min (34.4 ft/min) 5th layer: 13.4 m/min (44.0 ft/min) |
1st layer: 9.2 m/min (30.2 ft/min) 3rd layer: 12.6 m/min (41.3 ft/min) 5th layer: 16.0 m/min (52.5 ft/min) |
| Drum Capacity | 1st layer: φ9mmx8.9m (29.1 ft) 3rd layer: φ9mmx31.5m (103.3ft) 5th layer: φ9mmx60.7m (199.1ft) |
|
| Applicable Wire Rope | φ9mm (6XFi29) (Japanese Industrial Standards) | |
| Gear Ratio | 57.2 : 1 | |
| Motor type | Totally enclosed self-cooling type: built-in motor | |
| Output | 2.2 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 9.3A | Three-phase AC200V 60Hz 8.5A |
| Insulation | Class B | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | 40%ED | |
| Control method | Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 4 cores x 2.5m) | |
| Own weight | 65.9 kg (145.3lbs) |
Model: BMW-502
| Model | BMW-502 | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 1200kgf (2600lbs) 3rd layer: 1200kgf (2600lbs) 5th layer: 930kgf (2000lbs) |
1st layer: 1000kgf (2200lbs) 3rd layer: 1000kgf (2200lbs) 5th layer: 780kgf (1700lbs) |
| Line Speed | 1st layer: 5.1 m/min (16.7 ft/min) 3rd layer: 7.1 m/min (23.3 ft/min) 5th layer: 9.2 m/min (30.2 ft/min) |
1st layer: 6.1 m/min (20.0 ft/min) 3rd layer: 8.5 m/min (27.9 ft/min) 5th layer: 11.0 m/min (36.1 ft/min) |
| Drum Capacity | 1st layer: φ10mmx7.8m (25.5 ft) 3rd layer: φ10mmx28.3m (92.8ft) 5th layer: φ10mmx55.1m (180.7ft) |
|
| Applicable Wire Rope | φ10mm (6XFi29) (Japanese Industrial Standards) | |
| Gear Ratio | 87.5 : 1 | |
| Motor type | Totally enclosed self-cooling type: built-in motor | |
| Output | 2.2 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 9.3A | Three-phase AC200V 60Hz 8.5A |
| Insulation | Class B | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | 40%ED | |
| Control method | Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 4 cores x 2.5m) | |
| Own weight | 66.2 kg (145.9lbs) |
Model: BMW-503
| Model | BMW-503 | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 1300kgf (2800lbs) 3rd layer: 1300kgf (2800lbs) 5th layer: 1000kgf (2200lbs) |
1st layer: 1150kgf (2500lbs) 3rd layer: 1150kgf (2500lbs) 5th layer: 900kgf (1900lbs) |
| Line Speed | 1st layer: 4.3 m/min (14.1 ft/min) 3rd layer: 6.0 m/min (19.7 ft/min) 5th layer: 7.8 m/min (25.6 ft/min) |
1st layer: 5.2 m/min (17.1 ft/min) 3rd layer: 7.2 m/min (23.6 ft/min) 5th layer: 9.3 m/min (30.5 ft/min) |
| Drum Capacity | 1st layer: φ10mmx7.8m (25.5 ft) 3rd layer: φ10mmx28.3m (92.8ft) 5th layer: φ10mmx55.1m (180.7ft) |
|
| Applicable Wire Rope | φ10mm (6XFi29) (Japanese Industrial Standards) | |
| Gear Ratio | 103.3 : 1 | |
| Motor type | Totally enclosed self-cooling type: built-in motor | |
| Output | 2.2 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 9.3A | Three-phase AC200V 60Hz 8.5A |
| Insulation | Class B | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | 40%ED | |
| Control method | Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 4 cores x 2.5m) | |
| Own weight | 67.5 kg (148.8lbs) |
