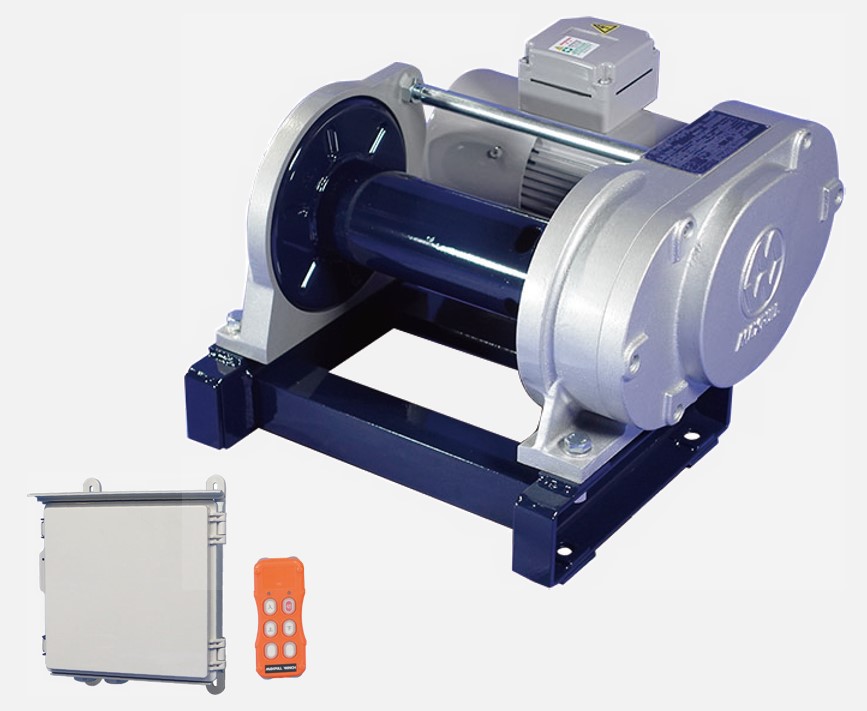

Features of BMW Air three-phase 200V series
Equipped with radio control system that enables operation of winch even from a remote location
● Equipped with a transmitter that can be operated from a distance of 30m if there are no obstacles
● A lightweight terminal box made of ABS resin equipped with a receiver achieves protection class IP65.
● The fan-integrated motor enables operation for a rated time of 30 minutes.
● In the event of a power failure or other emergency, a manual brake release device can be used to safely lower the suspended load.
● This winch uses industrial three-phase 200V.
Model: BMW-201Air(RC set) / BMW-202Air(RC set) / BMW-203Air(RC set) / BMW-301Air(RC set) / BMW-302Air(RC set) / BMW-303Air(RC set)
Excellent compactness
The parallel type, which has two rows of the motor and drum sections, is compact and can be installed in narrow spaces.
Exceptional durability
In addition to using an outdoor motor, the reduction mechanism is rust-resistant and the frame is made of lightweight aluminum alloy casting. This product has high self-cooling properties and good heat dissipation making it safe for rain, wind, and dust. The sound is also quiet.
Reliable safety
It uses MAXPULL’s original high-performance electromagnetic brake developed jointly with a motor manufacturer so it has extremely high braking force and it is effective even for detailed work. In addition, the manual brake release device can safely lower a suspended load even if the winch stops working in an emergency such as a power outage. The wire rope is fixed to the drum with a double safety structure using a special drum that ensures unrestricted winding. Fixing the end of the wire rope to the drum can be easily done using a Hex key L-wrench. Please see the explanation diagram below. This MAXPULL original design ensures a highly reliable and safe product.

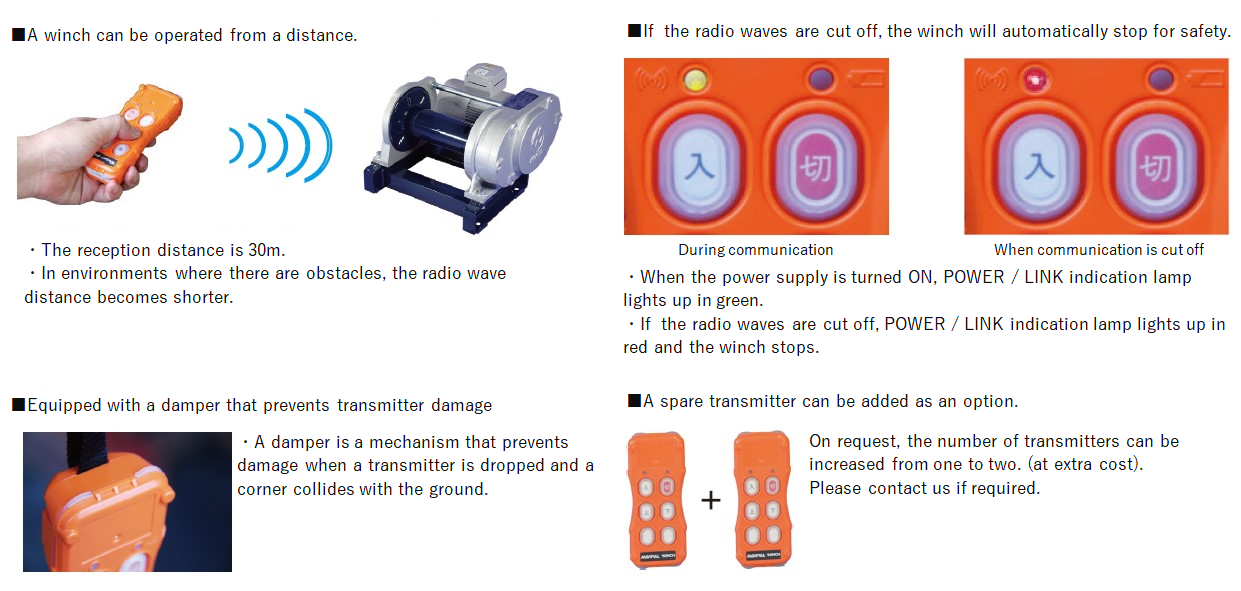

A winch can be operated from a distance.
If the radio waves are cut off, the winch will automatically stop for safety.
Equipped with a damper that prevents transmitter damage
Terminal box

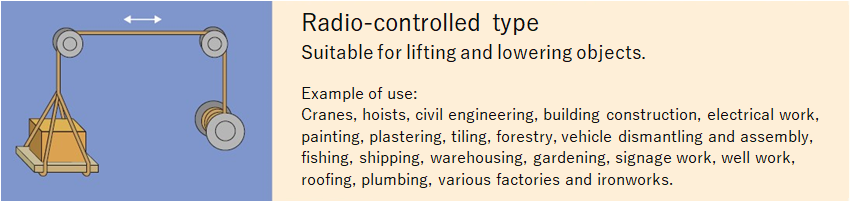

Radio-controlled type
BMW Air (RC set) three-phase 200V series product list
Introduction to list of products.
Model: BMW-201 Air(RC set)
| Model | BMW-201 Air(RC set) | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 130kgf (280lbs) 3rd layer: 130kgf (280lbs) 5th layer: 110kgf (240lbs) |
1st layer: 110kgf (240lbs) 3rd layer: 110kgf (240lbs) 5th layer: 90kgf (190lbs) |
| Line Speed | 1st layer: 10.3 m/min (33.8 ft/min) 3rd layer: 12.9 m/min (42.3 ft/min) 5th layer: 15.5 m/min (50.9 ft/min) |
1st layer: 12.3 m/min (40.4 ft/min) 3rd layer: 15.4 m/min (50.5 ft/min) 5th layer: 18.6 m/min (61.0 ft/min) |
| Drum Capacity | 1st layer: φ6mmx11.0m (36.0 ft) 3rd layer: φ6mmx37.3m (122.3ft) 5th layer: φ6mmx69.0m (226.3ft) |
|
| Applicable Wire Rope | φ6mm (6X24) (Japanese Industrial Standards) | |
| Gear Ratio | 40.3 : 1 | |
| Motor type | Totally enclosed external fan type: Three-phase motor | |
| Output | 0.4 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 2.70A | Three-phase AC200V 60Hz 2.43A |
| Insulation | Class F | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | S2 30 minutes | |
| Control method | Radio control (Primary side power cable 2m㎡ x 4 cores x 3m, secondary side power cable 2m㎡ x 4 cores x 3m) | |
| Own weight | 47.0 kg + 5.0 kg (103.6lbs + 11.0lbs) |
Model: BMW-202 Air(RC set)
| Model | BMW-202 Air(RC set) | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 210kgf (460lbs) 3rd layer: 210kgf (460lbs) 5th layer: 180kgf (390lbs) |
1st layer: 180kgf (390lbs) 3rd layer: 180kgf (390lbs) 5th layer: 150kgf (330lbs) |
| Line Speed | 1st layer: 6.5 m/min (21.3 ft/min) 3rd layer: 8.1 m/min (26.6 ft/min) 5th layer: 9.7 m/min (31.8 ft/min) |
1st layer: 7.7 m/min (25.3 ft/min) 3rd layer: 9.7 m/min (31.8 ft/min) 5th layer: 11.6 m/min (38.1 ft/min) |
| Drum Capacity | 1st layer: φ6mmx11.0m (36.0 ft) 3rd layer: φ6mmx37.3m (122.3ft) 5th layer: φ6mmx69.0m (226.3ft) |
|
| Applicable Wire Rope | φ6mm (6X24) (Japanese Industrial Standards) | |
| Gear Ratio | 64.5 : 1 | |
| Motor type | Totally enclosed external fan type: Three-phase motor | |
| Output | 0.4 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 2.70A | Three-phase AC200V 60Hz 2.43A |
| Insulation | Class F | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | S2 30 minutes | |
| Control method | Radio control (Primary side power cable 2m㎡ x 4 cores x 3m, secondary side power cable 2m㎡ x 4 cores x 3m) | |
| Own weight | 47.3 kg + 5.0 kg (104.3lbs + 11.0lbs) |
Model: BMW-203 Air(RC set)
| Model | BMW-203 Air(RC set) | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 330kgf (720lbs) 3rd layer: 330kgf (720lbs) 5th layer: 280kgf (610lbs) |
1st layer: 270kgf (590lbs) 3rd layer: 270kgf (590lbs) 5th layer: 230kgf (500lbs) |
| Line Speed | 1st layer: 4.2 m/min (13.8 ft/min) 3rd layer: 5.3 m/min (17.4 ft/min) 5th layer: 6.3 m/min (20.7 ft/min) |
1st layer: 5.0 m/min (16.4 ft/min) 3rd layer: 6.3 m/min (20.7 ft/min) 5th layer: 7.6 m/min (24.9 ft/min) |
| Drum Capacity | 1st layer: φ6mmx11.0m (36.0 ft) 3rd layer: φ6mmx37.3m (122.3ft) 5th layer: φ6mmx69.0m (226.3ft) |
|
| Applicable Wire Rope | φ6mm (6X24) (Japanese Industrial Standards) | |
| Gear Ratio | 99.0 : 1 | |
| Motor type | Totally enclosed external fan type: Three-phase motor | |
| Output | 0.4 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 2.70A | Three-phase AC200V 60Hz 2.43A |
| Insulation | Class F | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | S2 30 minutes | |
| Control method | Radio control (Primary side power cable 2m㎡ x 4 cores x 3m, secondary side power cable 2m㎡ x 4 cores x 3m) | |
| Own weight | 49.2 kg + 5.0 kg (108.5lbs + 11.0lbs) |
Model: BMW-301 Air(RC set)
| Model | BMW-301 Air(RC set) | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 250kgf (550lbs) 3rd layer: 250kgf (550lbs) 5th layer: 210kgf (460lbs) |
1st layer: 210kgf (460lbs) 3rd layer: 210kgf (460lbs) 5th layer: 170kgf (370lbs) |
| Line Speed | 1st layer: 10.4 m/min (34.1 ft/min) 3rd layer: 13.0 m/min (42.7 ft/min) 5th layer: 15.6 m/min (51.2 ft/min) |
1st layer: 12.6 m/min (41.3 ft/min) 3rd layer: 15.8 m/min (51.8 ft/min) 5th layer: 18.9 m/min (62.0 ft/min) |
| Drum Capacity | 1st layer: φ6mmx11.0m (36.0 ft) 3rd layer: φ6mmx37.3m (122.3ft) 5th layer: φ6mmx69.0m (226.3ft) |
|
| Applicable Wire Rope | φ6mm (6X24) (Japanese Industrial Standards) | |
| Gear Ratio | 40.3 : 1 | |
| Motor type | Totally enclosed external fan type: Three-phase motor | |
| Output | 0.75 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 3.91A | Three-phase AC200V 60Hz 3.63A |
| Insulation | Class F | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | S2 30 minutes | |
| Control method | Radio control (Primary side power cable 2m㎡ x 4 cores x 3m, secondary side power cable 2m㎡ x 4 cores x 3m) | |
| Own weight | 48.4 kg + 5.0 kg (106.7lbs + 11.0lbs) |
Model: BMW-302 Air(RC set)
| Model | BMW-302 Air(RC set) | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 400kgf (880lbs) 3rd layer: 400kgf (880lbs) 5th layer: 330kgf (720lbs) |
1st layer: 330kgf (720lbs) 3rd layer: 330kgf (720lbs) 5th layer: 280kgf (610lbs) |
| Line Speed | 1st layer: 6.5 m/min (21.3 ft/min) 3rd layer: 8.1 m/min (26.6 ft/min) 5th layer: 9.8 m/min (32.2 ft/min) |
1st layer: 7.8 m/min (25.6 ft/min) 3rd layer: 9.9 m/min (32.5 ft/min) 5th layer: 11.8 m/min (38.7 ft/min) |
| Drum Capacity | 1st layer: φ6mmx11.0m (36.0 ft) 3rd layer: φ6mmx37.3m (122.3ft) 5th layer: φ6mmx69.0m (226.3ft) |
|
| Applicable Wire Rope | φ6mm (6X24) (Japanese Industrial Standards) | |
| Gear Ratio | 64.5 : 1 | |
| Motor type | Totally enclosed external fan type: Three-phase motor | |
| Output | 0.75 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 3.91A | Three-phase AC200V 60Hz 3.63A |
| Insulation | Class F | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | S2 30 minutes | |
| Control method | Radio control (Primary side power cable 2m㎡ x 4 cores x 3m, secondary side power cable 2m㎡ x 4 cores x 3m) | |
| Own weight | 48.7 kg + 5.0 kg (107.4lbs + 11.0lbs) |
Model: BMW-303 Air(RC set)
| Model | BMW-303 Air(RC set) | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 580kgf (1200lbs) 3rd layer: 580kgf (1200lbs) 5th layer: 470kgf (1000lbs) |
1st layer: 480kgf (1000lbs) 3rd layer: 480kgf (1000lbs) 5th layer: 390kgf (850lbs) |
| Line Speed | 1st layer: 4.3 m/min (14.1 ft/min) 3rd layer: 5.7 m/min (18.7 ft/min) 5th layer: 7.2 m/min (23.6 ft/min) |
1st layer: 5.2 m/min (17.1 ft/min) 3rd layer: 6.9 m/min (22.6 ft/min) 5th layer: 8.7 m/min (28.5 ft/min) |
| Drum Capacity | 1st layer: φ8mmx8.5m (27.8 ft) 3rd layer: φ8mmx29.7m (97.4ft) 5th layer: φ8mmx56.6m (185.6ft) |
|
| Applicable Wire Rope | φ8mm (6XFi29) (Japanese Industrial Standards) | |
| Gear Ratio | 99.0 : 1 | |
| Motor type | Totally enclosed external fan type: Three-phase motor | |
| Output | 0.75 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 3.91A | Three-phase AC200V 60Hz 3.63A |
| Insulation | Class F | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | S2 30 minutes | |
| Control method | Radio control (Primary side power cable 2m㎡ x 4 cores x 3m, secondary side power cable 2m㎡ x 4 cores x 3m) | |
| Own weight | 50.0 kg + 5.0 kg (110.2lbs + 11.0lbs) |
