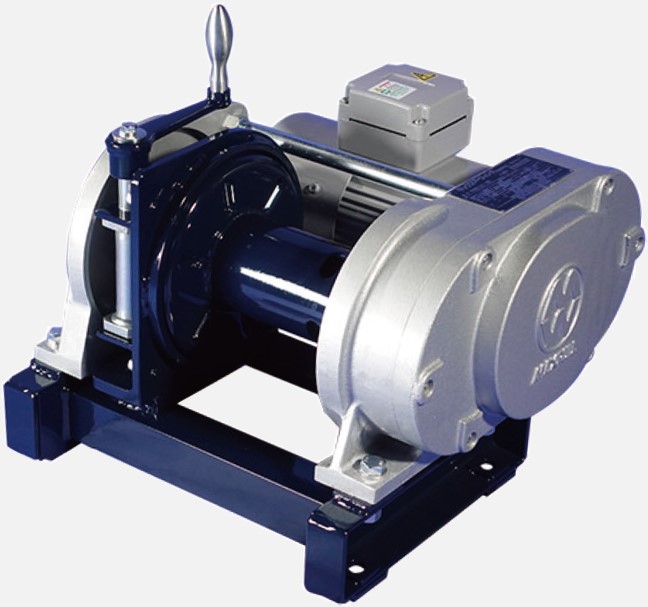

Features of BMW Air-SC three-phase 200V series
This is an electric winch equipped with a dog clutch that is suitable for frequent wire rope winding and unwinding.
● With the simple operation of a single lever, the drum can be put in neutral position and the wire rope can be easily pulled out.
● The clutch operation is light, easy and reliable due to the precision design.
● The fan-integrated motor enables operation for a rated time of 30 minutes.
● In the event of a power failure or other emergency, a manual brake release device can be used to safely lower the suspended load.
● A high-performance electromagnetic brake is used; therefore, the braking power is extremely high making it effective even for delicate work.
● This winch uses industrial three-phase 200V.
Model: BMW-201Air-SC / BMW-202Air-SC / BMW-203Air-SC / BMW-301Air-SC / BMW-302Air-SC / BMW-303Air-SC
BMW dog clutch series
This is an interlocking winch that is standardized by attaching a clutch to a popular BMW Air series. The drum can be put in a neutral state simply by operating a single lever. In addition, the clutch operation is light and reliable due to the precision design. Since no rotational load is applied to the motor or reduction gear, the unwinding of the wire can be easily done.
Parallel type winch equipped with built-in motor
This is an electric winch equipped with a built-in motor in parallel with the drum. A precisely designed reduction gear allows electric power to work directly providing a strong and stable traction. In addition, special heat treatment is applied to the aluminum alloy casting making it a much lighter and smaller than conventional products. It is dust and rust resistent, rain-proof, and can be installed in small spaces. The power supply is AC200V.
● The parallel type, which has two rows of the motor and drum sections, is compact and can be installed in narrow spaces.
● In addition to using an outdoor motor, the reduction mechanism is rust-resistant and the frame is made of lightweight aluminum alloy casting. This product has high self-cooling properties and good heat dissipation making it safe for rain, wind, and dust. The sound is also quiet.
● It uses MAXPULL’s original high-performance electromagnetic brake developed jointly with a motor manufacturer so it has extremely high braking force and it is effective even for detailed work. In addition, the manual brake release device can safely lower a suspended load even if the winch stops working in an emergency such as a power outage.
● The wire rope can be installed easily and securely by simply passing the wire rope through two wire holes on drum pipe and tightening the fastener.
“4 features” of BMW Air three phase 200V series
“OFF” and “ON” of clutch

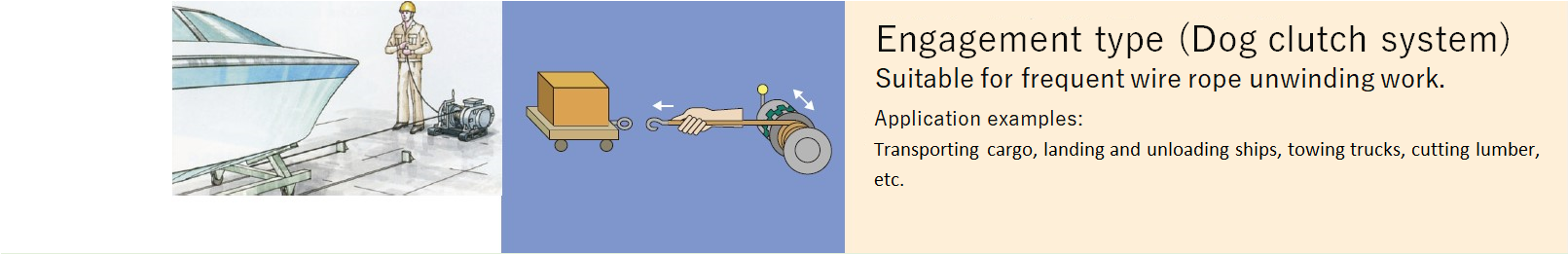

Engagement type (Dog clutch system)
Winch usage site & wire turning
When a ship docks at port, the winch can quickly pull the wire rope out for unloading purposes.
BMW Air three-phase 200V dog clutch series product list
Model: BMW-201 Air-SC
| Model | BMW-201 Air-SC | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 130kgf (280lbs) 3rd layer: 130kgf (280lbs) 5th layer: 110kgf (240lbs) |
1st layer: 110kgf (240lbs) 3rd layer: 110kgf (240lbs) 5th layer: 90kgf (190lbs) |
| Line Speed | 1st layer: 10.3 m/min (33.8 ft/min) 3rd layer: 12.9 m/min (42.3 ft/min) 5th layer: 15.5 m/min (50.9 ft/min) |
1st layer: 12.3 m/min (40.4 ft/min) 3rd layer: 15.4 m/min (50.5 ft/min) 5th layer: 18.6 m/min (61.0 ft/min) |
| Drum Capacity | 1st layer: φ6mmx7.0m (22.9 ft) 3rd layer: φ6mmx23.6m (77.4ft) 5th layer: φ6mmx43.8m (143.7ft) |
|
| Applicable Wire Rope | φ6mm (6X37) (Japanese Industrial Standards) | |
| Gear Ratio | 40.3 : 1 | |
| Motor type | Totally enclosed external fan type: Three-phase motor | |
| Output | 0.4 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 2.70A | Three-phase AC200V 60Hz 2.43A |
| Insulation | Class F | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | S2 30 minutes | |
| Control method | Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 4 cores x 2.5m) | |
| Own weight | 50.4 kg (111.1lbs) |
Model: BMW-202 Air-SC
| Model | BMW-202 Air-SC | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 210kgf (460lbs) 3rd layer: 210kgf (460lbs) 5th layer: 180kgf (390lbs) |
1st layer: 180kgf (390lbs) 3rd layer: 180kgf (390lbs) 5th layer: 150kgf (330lbs) |
| Line Speed | 1st layer: 6.5 m/min (21.3 ft/min) 3rd layer: 8.1 m/min (26.6 ft/min) 5th layer: 9.7 m/min (31.8 ft/min) |
1st layer: 7.7 m/min (25.3 ft/min) 3rd layer: 9.7 m/min (31.8 ft/min) 5th layer: 11.6 m/min (38.1 ft/min) |
| Drum Capacity | 1st layer: φ6mmx7.0m (22.9 ft) 3rd layer: φ6mmx23.6m (77.4ft) 5th layer: φ6mmx43.8m (143.7ft) |
|
| Applicable Wire Rope | φ6mm (6X37) (Japanese Industrial Standards) | |
| Gear Ratio | 64.5 : 1 | |
| Motor type | Totally enclosed external fan type: Three-phase motor | |
| Output | 0.4 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 2.70A | Three-phase AC200V 60Hz 2.43A |
| Insulation | Class F | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | S2 30 minutes | |
| Control method | Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 4 cores x 2.5m) | |
| Own weight | 50.7 kg (111.8lbs) |
Model: BMW-203 Air-SC
| Model | BMW-203 Air-SC | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 330kgf (720lbs) 3rd layer: 330kgf (720lbs) 5th layer: 280kgf (610lbs) |
1st layer: 270kgf (590lbs) 3rd layer: 270kgf (590lbs) 5th layer: 230kgf (500lbs) |
| Line Speed | 1st layer: 4.2 m/min (13.8 ft/min) 3rd layer: 5.3 m/min (17.4 ft/min) 5th layer: 6.3 m/min (20.7 ft/min) |
1st layer: 5.0 m/min (16.4 ft/min) 3rd layer: 6.3 m/min (20.7 ft/min) 5th layer: 7.6 m/min (24.9 ft/min) |
| Drum Capacity | 1st layer: φ6mmx7.0m (22.9 ft) 3rd layer: φ6mmx23.6m (77.4ft) 5th layer: φ6mmx43.8m (143.7ft) |
|
| Applicable Wire Rope | φ6mm (6X37) (Japanese Industrial Standards) | |
| Gear Ratio | 99.0 : 1 | |
| Motor type | Totally enclosed external fan type: Three-phase motor | |
| Output | 0.4 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 2.70A | Three-phase AC200V 60Hz 2.43A |
| Insulation | Class F | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | S2 30 minutes | |
| Control method | Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 4 cores x 2.5m) | |
| Own weight | 52.6 kg (116.0lbs) |
Model: BMW-301 Air-SC
| Model | BMW-301 Air-SC | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 250kgf (550lbs) 3rd layer: 250kgf (550lbs) 5th layer: 210kgf (460lbs) |
1st layer: 210kgf (460lbs) 3rd layer: 210kgf (460lbs) 5th layer: 170kgf (370lbs) |
| Line Speed | 1st layer: 10.4 m/min (34.1 ft/min) 3rd layer: 13.0 m/min (42.7 ft/min) 5th layer: 15.6 m/min (51.2 ft/min) |
1st layer: 12.6 m/min (41.3 ft/min) 3rd layer: 15.8 m/min (51.8 ft/min) 5th layer: 18.9 m/min (62.0 ft/min) |
| Drum Capacity | 1st layer: φ6mmx7.0m (22.9 ft) 3rd layer: φ6mmx23.6m (77.4ft) 5th layer: φ6mmx43.8m (143.7ft) |
|
| Applicable Wire Rope | φ6mm (6X37) (Japanese Industrial Standards) | |
| Gear Ratio | 40.3 : 1 | |
| Motor type | Totally enclosed external fan type: Three-phase motor | |
| Output | 0.75 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 3.91A | Three-phase AC200V 60Hz 3.63A |
| Insulation | Class F | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | S2 30 minutes | |
| Control method | Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 4 cores x 2.5m) | |
| Own weight | 51.8 kg (114.2lbs) |
Model: BMW-302 Air-SC
| Model | BMW-302 Air-SC | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 400kgf (880lbs) 3rd layer: 400kgf (880lbs) 5th layer: 330kgf (720lbs) |
1st layer: 330kgf (720lbs) 3rd layer: 330kgf (720lbs) 5th layer: 280kgf (610lbs) |
| Line Speed | 1st layer: 6.5 m/min (21.3 ft/min) 3rd layer: 8.1 m/min (26.6 ft/min) 5th layer: 9.8 m/min (32.2 ft/min) |
1st layer: 7.8 m/min (25.6 ft/min) 3rd layer: 9.9 m/min (32.5 ft/min) 5th layer: 11.8 m/min (38.7 ft/min) |
| Drum Capacity | 1st layer: φ6mmx7.0m (22.9 ft) 3rd layer: φ6mmx23.6m (77.4ft) 5th layer: φ6mmx43.8m (143.7ft) |
|
| Applicable Wire Rope | φ6mm (6X37) (Japanese Industrial Standards) | |
| Gear Ratio | 64.5 : 1 | |
| Motor type | Totally enclosed external fan type: Three-phase motor | |
| Output | 0.75 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 3.91A | Three-phase AC200V 60Hz 3.63A |
| Insulation | Class F | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | S2 30 minutes | |
| Control method | Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 4 cores x 2.5m) | |
| Own weight | 52.1 kg (114.9lbs) |
Model: BMW-303 Air-SC
| Model | BMW-303 Air-SC | |
|---|---|---|
| Frequency | 50Hz | 60Hz |
| Load Rating | 1st layer: 580kgf (1200lbs) 3rd layer: 580kgf (1200lbs) 5th layer: 470kgf (1000lbs) |
1st layer: 480kgf (1000lbs) 3rd layer: 480kgf (1000lbs) 5th layer: 390kgf (850lbs) |
| Line Speed | 1st layer: 4.3 m/min (14.1 ft/min) 3rd layer: 5.7 m/min (18.7 ft/min) 5th layer: 7.2 m/min (23.6 ft/min) |
1st layer: 5.2 m/min (17.1 ft/min) 3rd layer: 6.9 m/min (22.6 ft/min) 5th layer: 8.7 m/min (28.5 ft/min) |
| Drum Capacity | 1st layer: φ8mmx5.5m (18.0 ft) 3rd layer: φ8mmx19.2m (62.9ft) 5th layer: φ8mmx36.5m (119.7ft) |
|
| Applicable Wire Rope | φ8mm (6X37) (Japanese Industrial Standards) | |
| Gear Ratio | 99.0 : 1 | |
| Motor type | Totally enclosed external fan type: Three-phase motor | |
| Output | 0.75 kW | |
| Number of poles | 4 P | |
| Voltage / Current | Three-phase AC200V 50Hz 3.91A | Three-phase AC200V 60Hz 3.63A |
| Insulation | Class F | |
| Brake | Spring close type electromagnetic brake | |
| Braking rate | 150% or more | |
| Load time rate | S2 30 minutes | |
| Control method | Direct operation by 2-point pushbutton switch (operation cable 2mm2 x 4 cores x 2.5m / power cable 2mm2 x 4 cores x 2.5m) | |
| Own weight | 53.8 kg (118.6lbs) |
